Specification
| Distance Measurement | Reflector Range | 5000m*¹ |
| Reflectorless*² Range | 1000m or 1500m | |
| Accuracy | Reflector: ±(2+2ppm x D)mm Reflectorless: ±(3+2ppm x D)mm |
|
| Measuring Interval | With Reflector: Fine < 0.3s, Tracking < 0.1s Without Reflector: 0.3s-3s*³ |
|
| Others | EDM Type: Coaxial Minimum Reading: 0.1mm Unit: Meter/ US.Feet/ Int.Feet/ Feet-inch |
|
| Angle Measurement | Accuracy | 2” or 5” |
| Reading System | Absolute Encoding | |
| Circle Diameter | 79mm | |
| Minimum Increment | 1”/5” | |
| Detection Method | Horizontal: Dual, Vertical: Dual | |
| Telescope | Image | Erect |
| Tube Length | 154mm | |
| Effective Aperture | 45mm (EDM:50MM) | |
| Magnification | 30x | |
| Field of View | 1°30’ | |
| Minimum Focus Distance | 1.2m | |
| Resolving Power | 3” | |
| Tilt Sensor | System | Dual Axis Liquid-Electric |
| Working Range | ±4’ | |
| Accuracy | 1” | |
| Communications | Communication Ports | USB Port |
| Data Interface | USB Stick, Bluetooth | |
| Effective Range of Bluetooth | 10m | |
| Plummet | Laser Plummet | ±1.5mm at 1.5m |
| Optical Plummet (Optional) | Erect Image | |
| Magnification | 3 X | |
| Focusing Range | 0.5m~∞ | |
| Field of View | 5° | |
| Auto Height | Working Range | N6+: — N6H: 0.5-3m |
| Min. Reading | N6+: — N6H: 1mm |
|
| Accuracy | N6+: — N6H: ±1.5mm |
|

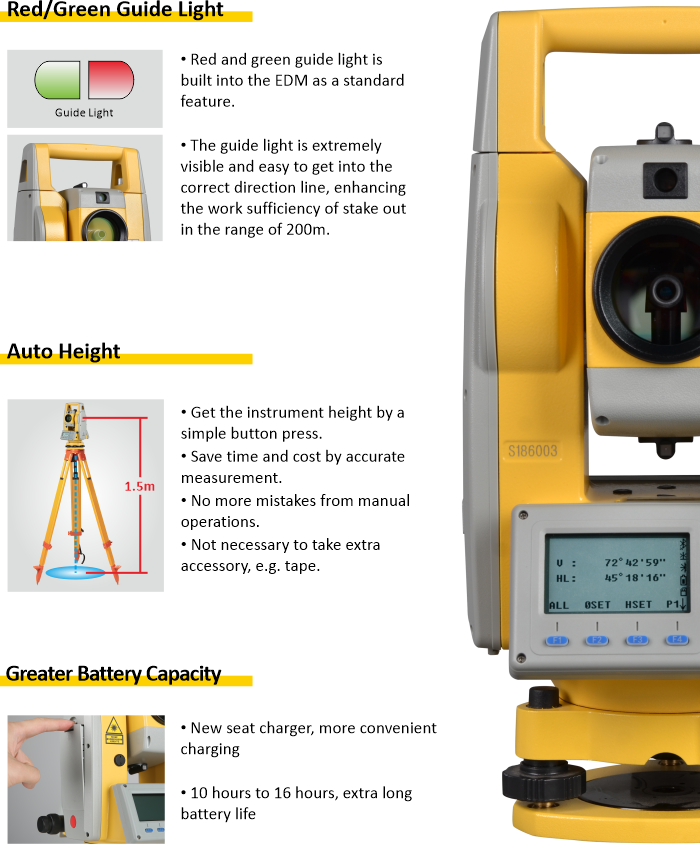

| Guide Light | Type | LED |
| Wavelength | Red 635nm/ Green 590nm | |
| Effective Range | 200m | |
| Power | Type | Rechargeable Lithium battery |
| Voltage | 7.4V DC, 5000mAH | |
| Operating Time | 16 Hours*⁴ | |
| Level Vials | Plate Vial | 30”/2mm |
| Circular Vial | 8’/2mm | |
| Others | Dust and Water Protection | IP55 |
| Display | Dual Side, LCD 6 Lines | |
| Keyboard | Alphanumeric 24 Keys | |
| Operating Temperature | -20°C ~ +50°C | |
| Atmosphere Correction | Manual Input, Auto Correction | |
| Earth Curvature Correction | Manual Input, Auto Correction | |
| Prism Constant | Manual Input, Auto Correction | |
| Dimension | 190mm x 195mm x 335mm | |
| Weight (approx..) | 5.5kg |
*1. Good Conditions: good visibility about 20km, overcast, no scintillation. *2. Under Kodak Gray (90%). Measuring distance may vary depending on targets and the conditions. *3. Measuring time may vary depending on measure distance and conditions. For the initial measurement, it may take a longer time. *4. Battery life specification at 25℃ . It might be shorter in low temperature or if the battery is old. Note: all information above is subject to change without any prior notice.
