Description
Leica NA720 features include:
- 20x magnification
- Upright telescope image
- Gas filled telescope
- 30mm objective diameter
- 50cm short focus distance
- 360 degree / 400 gon selectable angle measurement
- 10’ / 2 mm circular bubble
- Endless Horizontal Drive
- 2.5mm double run accuracy
- ± 15’ working range
- Water resistant
- –20 to +50 °C operating temperature
- 1.6kg total weight
- 19cm x 12cm x 12cm
Includes:

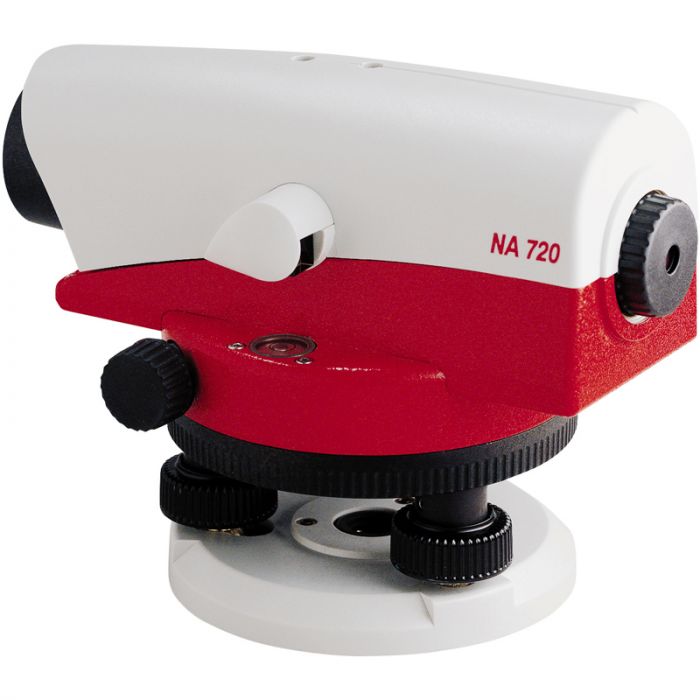

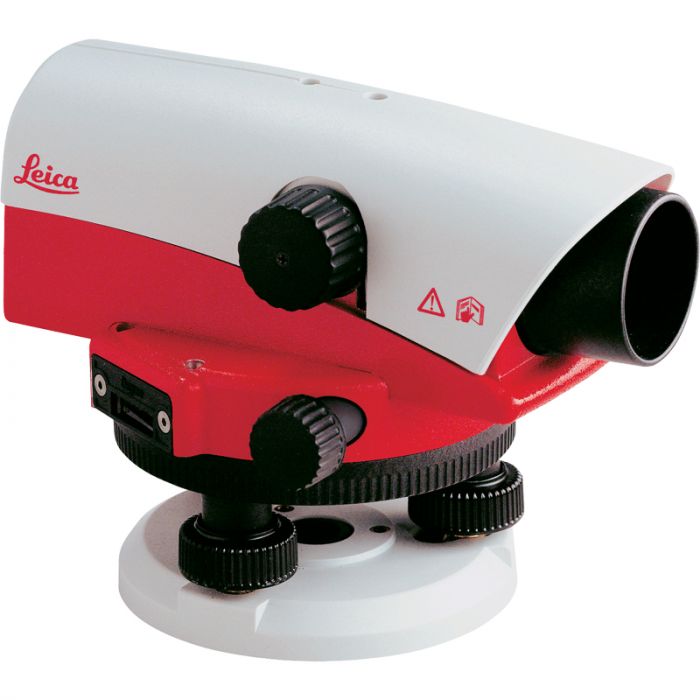

- Leica NA720 Automatic Level
- Carry Case
- User Manual
Technical Data | ||||
NA720 | NA724 | NA728 | NA730 | |
Accuracy | ||||
Per km double run | 2.5 mm | 2 mm | 1.5 mm | 1.2 mm |
Single measurement – Target distance 30m | 1.5 mm | 1.2 mm | 1 mm | 0.8 mm |
Compensator | ||||
Setting accuracy | < 0.5″ | < 0,5″ | < 0.3″ | < 0.3″ |
Working range | ± 15′ | ± 15′ | ± 15′ | ± 15′ |
Environmental | ||||
Impact standard | ISO 9022-33-5 | ISO 9022-33-5 | ISO 9022-33-5 | ISO 9022-33-5 |
Resistance to water and dust ingress | IP57 | IP57 | IP57 | IP57 |
Temperature Range | ||||
– Operation | -20° to +50°C | -20° to +50°C | -20° to +50°C | -20° to +50°C |
– Storage | -40° to +70°C | -40° to +70°C | -40° to +70°C | -40° to +70°C |
Dimensions & Weight | ||||
Dimensions | 19x12x12 cm | 19x12x12 cm | 21x12x12 cm | 21x12x12 cm |
Weight | 1,6 kg | 1,6 kg/TD> | 1,7 kg | 1,7 kg |
